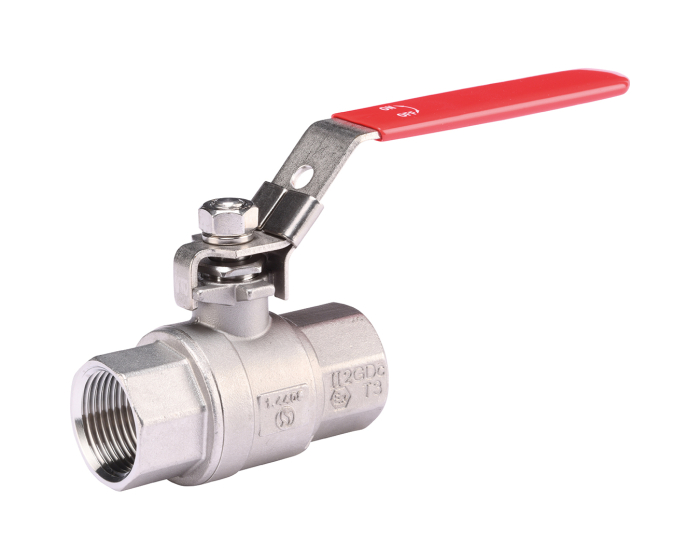

The Sferaco 706 series ball valve, 2-piece body, stainless steel, with BSP female/female connection and DIN3202 M3 face to face, full bore, PTFE packing gland, ATEX compliant.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| EN face-to-face standard | EN 16722 M3 Series |
| DIN face-to-face standard | DIN 3202 M3 |
| Face to face standard | EN 16722 M3. DIN 3202 M3 |
| Thread standard | ISO 228-1 |
| Tightness test standard | ISO 5208. Rate A |
| Stem sealing material | PTFE gland packing |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| ATEX compatible | Yes |
| Torque (Nm) | 2 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 590.0 |
| Fluid | Acids |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -50 |
| Ball valve design | 2-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/4'' Red lever | 706002 | S1006422 |
€7.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/8'' Red lever | 706003 | S1006423 |
€8.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2'' Red lever | 706004 | S1006424 |
€11.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/4'' Red lever | 706005 | S1006425 |
€14.50
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1'' Red lever | 706006 | S1006426 |
€22.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/4 Red lever | 706007 | S1006427 |
€33.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/2 Red lever | 706008 | S1006428 |
€46.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 2'' Red lever | 706009 | S1006429 |
€69.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 2''1/2 Red lever | 706010 | S1006430 |
€149.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3'' Red lever | 706011 | S1006431 |
€221.33
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 4'' Red lever | 706012 | S1006432 |
€458.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2'' Red handle | 706104 | S1006433 |
€11.29
(excl. btw)
|
add to cart |
